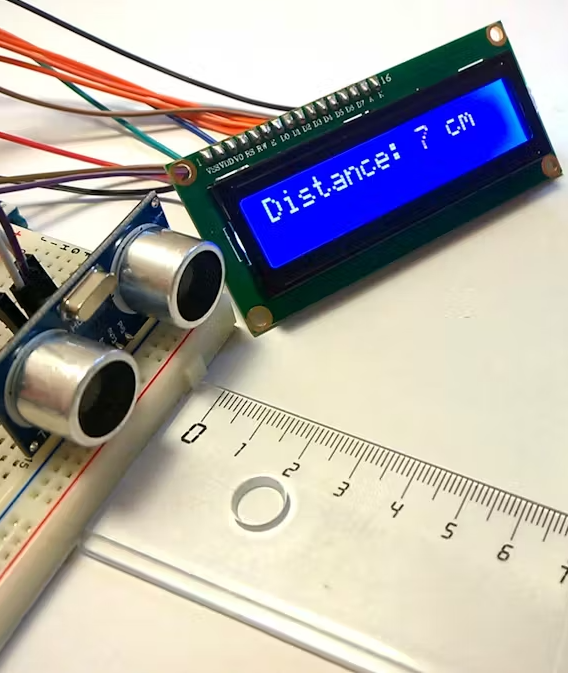

Powering the HC-SR04 Sensor Safely (and Accurately)

Audience: STEM teachers and facilitators running classroom robotics projects.

The HC-SR04 ultrasonic sensor is a classroom favorite: it’s affordable, reliable, and perfect for obstacle detection. But if it’s powered or wired incorrectly, you’ll see jumpy values, random zeros, or no readings at all. This guide shows you how to power the HC-SR04 safely and get accurate, repeatable measurements — with tips that scale to a full classroom.

🧩 See the full HC-SR04 Ultrasonic Sensor Guide for wiring diagrams, code, and troubleshooting.

Why Power Matters

The HC-SR04 is designed for 5 V operation. While its current draw is modest, the sensor and your microcontroller both rely on a stable supply and a clean ground reference. In class, shared USB hubs and long jumper wires can introduce voltage drop or noise, leading to erratic measurements.

Correct Voltage & Logic Levels

• VCC (Power): Feed the module with 5 V.
• GND: Connect to the microcontroller ground.
• TRIG: 3.3 V or 5 V output from the microcontroller is okay (it’s an input on the sensor).
• ECHO: Outputs 5 V logic. If your board is 3.3 V–only (e.g., ESP32, Raspberry Pi Pico), use a voltage divider on ECHO to avoid stressing the input pin.

For Arduino Uno or Nano (5 V logic), you can connect ECHO directly. For 3.3 V boards, add two resistors (e.g., 10 kΩ + 15 kΩ) to drop 5 V → ~3.0 V on the ECHO line. Or use a logic level shifter if you have one.

Classroom-Proof Power Setup

USB power can fluctuate when multiple devices share the same hub. For consistent results across teams:

1. Use a dedicated 5 V source for sensors/servos (not Arduino’s 5 V pin for the whole robot).
2. Distribute power via a LM2596 step-down module set to 5.00 V.
3. Always tie grounds together (sensor, Arduino, and any external supply).

🧩 LM2596 Power Module classroom guide — how to set voltage and wire safely.

Noise Reduction Tips (Better Accuracy)

• Decoupling: Add a 100 µF electrolytic capacitor across the HC-SR04’s VCC and GND near the module.
• Cable discipline: Keep wires short (under 20 cm) and avoid running signal lines parallel to motor wires.
• Mounting: Aim the sensor away from soft, angled, or shiny surfaces that absorb or deflect sound.
• Sampling: Take multiple readings and compute the median/average to smooth outliers.

Minimal Arduino Test Sketch

Use this quick test to confirm power and logic are correct before building the full robot. It prints the measured distance in centimeters.

// HC-SR04 minimal test (5 V boards)
const int trigPin = 9;
const int echoPin = 10;

void setup() {
  Serial.begin(9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
}

long measureCM() {
  digitalWrite(trigPin, LOW); delayMicroseconds(2);
  digitalWrite(trigPin, HIGH); delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  long duration = pulseIn(echoPin, HIGH, 30000); // timeout 30ms
  // Speed of sound ~343 m/s ⇒ 29.1 µs per cm (round trip)
  long cm = duration / 58; // or duration * 0.0343 / 2
  return cm;
}

void loop() {
  long cm = measureCM();
  if (cm == 0) {
    Serial.println("No echo (check wiring/aim)");
  } else {
    Serial.print("Distance: ");
    Serial.print(cm);
    Serial.println(" cm");
  }
  delay(200);
}

For 3.3 V boards: keep the same code, but ensure a voltage divider on the ECHO pin.

Common Classroom Issues & Fixes

• All readings are zero: TRIG/ECHO swapped or ECHO level too high for a 3.3 V board. Check wiring and add a divider.
• Random spikes: Power noise or reflections. Add the capacitor, shorten wires, and average samples.
• Inconsistent between teams: Mixed power strategies. Standardize on a shared 5 V rail from a tuned LM2596.

Lesson Extensions

• Data literacy: Have students log 50 readings, plot them, and explain outliers.
• Design thinking: Test sensor placement on the chassis to optimize field of view.
• Cross-curricular: Discuss speed of sound and how temperature/humidity can affect measurements.

For wiring diagrams, code templates, and printable worksheets, visit the RoboRider Technical Centre. Pair this sensor with two SG90 servos to build a simple obstacle-avoiding robot in a single lesson.

Quick Checklist for Teachers

• VCC = 5 V, ECHO level safe for your board (divider for 3.3 V MCUs).
• Grounds tied together (Arduino + sensor + external 5 V source).
• Capacitor across VCC/GND near the sensor; short, tidy wiring.
• Test with the minimal sketch before integrating into the robot.
