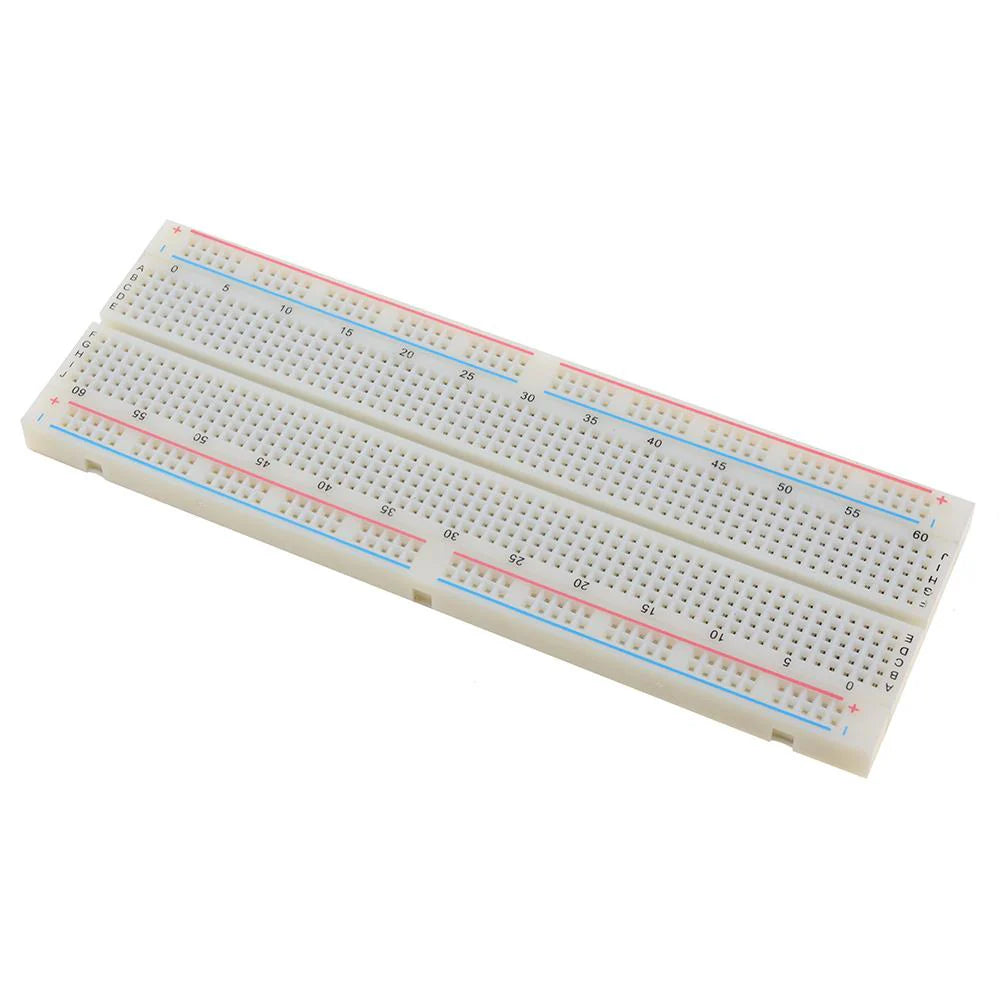

Full-Size Solderless Breadboards • Dual Power Rails • 830 Tie-Points Total per Board
Standard full-size layout with 63×10 terminal matrix and dual power rails for organized, large-scale circuit builds.
Side grooves allow multiple boards to snap together for expanded prototyping areas — ideal for complex circuits or classroom setups.
Peel-off adhesive foam pad lets you mount boards securely to panels, project boxes, or workbenches.
| Parameter | Value |
|---|---|
| Total Tie-Points | 830 (630 terminal + 200 power rail) |
| Bus Strips | 2 × Power Rails (marked +/–) |
| Terminal Strips | 2 × 63 rows of 5-hole groups |
| Pitch | 2.54 mm (0.1″) |
| Compatible Wire Size | AWG 20–29 solid core jumpers |
| Dimensions | Approx. 165 × 55 × 9 mm per board |
| Mounting | Adhesive backing + interlocking edges |
| Pack Quantity | 5 boards |
| Use Case | Electronics prototyping, STEM education, Arduino/Raspberry Pi projects |
This 830-point solderless breadboard 5-pack gives you a reliable foundation for electronics prototyping. Each board features a standard layout compatible with Arduino, ESP32, Raspberry Pi, and sensor modules.
The self-adhesive back keeps your setup neat, while interlocking sides let you expand your workspace for larger circuits — perfect for classrooms, makerspaces, and lab environments.
| Operating Voltage | 3.3 V – 5 V DC |
|---|---|
| Channels | 3 (independent, adjustable) |
| Outputs | 3× Digital (active level varies by board) |
| Sensing Elements | IR LED + Phototransistor (per channel) |
| Detection Distance | Approx. 2–15 mm (surface-dependent) |
| Indicators | Per-channel status LEDs |
| Adjustments | 3× trim-pot threshold controls |
| Connector | VCC / GND / D1 / D2 / D3 |
| Recommended Use | Educational, R&D or hobbyist environments only |
| Statement | For educational laboratory and R&D use only.(non-RoHS). |
|---|---|
| WEEE | Not subject to WEEE marking; obligations apply to final equipment. |
