Pan-Tilt Mount • Compact Design • Ideal for Ultrasonic Distance Sensing & Robotics Projects
Dual SG90 micro servos allow precise horizontal and vertical motion for sensor scanning, tracking, or object detection experiments.
Securely mounts the HC-SR04 ultrasonic distance sensor on top for accurate obstacle detection or environmental mapping.
Includes lightweight ABS or acrylic parts with mounting hardware. Quick to assemble and compatible with most Arduino-based robotic kits.
| Parameter | Value |
|---|---|
| Compatible Servos | SG90 / SG92R micro servos |
| Supported Sensors | HC-SR04 ultrasonic distance sensor |
| Material | High-strength ABS or acrylic plastic |
| Rotation Range | ~180° (pan), ~90° (tilt) |
| Dimensions | Approx. 55 × 40 × 70 mm (assembled) |
| Weight | ~30 g (excluding servos) |
| Mounting Holes | Standard M2/M3 screw holes for servo horns |
| Recommended Use | Educational, hobbyist, and prototype robotics applications |

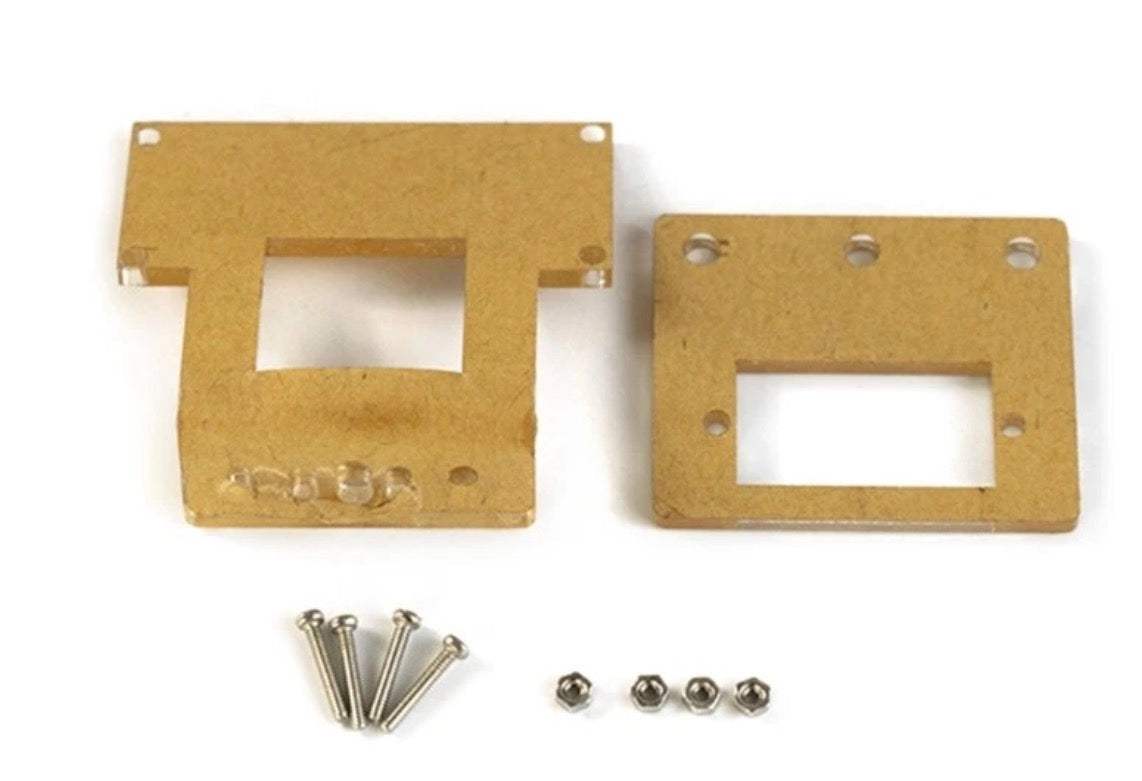

The Servo Sensor Bracket for SG90 and HC-SR04 enables builders to create pan-tilt scanning systems that bring motion and perception to DIY robots. It’s perfect for STEM education, distance sensing projects, and autonomous navigation prototypes.
By combining two SG90 micro servos with an HC-SR04 ultrasonic sensor, this compact mount allows for real-time object tracking, area mapping, and adaptive obstacle avoidance. Its modular design integrates easily with Arduino, ESP32, and Raspberry Pi robotics platforms.
Want to see this kit in action? Check out our Sensor-Servo Bracket Tutorial to connect, program, and test this pan-tilt ultrasonic sensing system.
| Operating Voltage | 3.3 V – 5 V DC |
|---|---|
| Channels | 3 (independent, adjustable) |
| Outputs | 3× Digital (active level varies by board) |
| Sensing Elements | IR LED + Phototransistor (per channel) |
| Detection Distance | Approx. 2–15 mm (surface-dependent) |
| Indicators | Per-channel status LEDs |
| Adjustments | 3× trim-pot threshold controls |
| Connector | VCC / GND / D1 / D2 / D3 |
| Recommended Use | Educational, R&D or hobbyist environments only |
| Statement | For educational laboratory and R&D use only.(non-RoHS). |
|---|---|
| WEEE | Not subject to WEEE marking; obligations apply to final equipment. |
