16×2 Character Display • I2C Interface • Adjustable Contrast • Blue Backlight
Shows up to 16 characters × 2 lines of text with crisp white characters on a vivid blue LED backlight — perfect for status readouts and data displays.
Features an I2C backpack for easy 2-wire communication — only SDA and SCL pins needed, saving valuable GPIOs on your microcontroller.
Onboard potentiometer lets you fine-tune display contrast easily. Ideal for adapting to different lighting environments and viewing angles.
| Parameter | Value |
|---|---|
| Display Type | 16×2 Character LCD (Alphanumeric) |
| Interface | I2C (SDA, SCL) |
| Controller | HD44780 or compatible via PCF8574 I2C expander |
| Operating Voltage | 5 V DC |
| Backlight | Blue LED with white characters |
| Contrast Adjustment | Via onboard potentiometer |
| I2C Address | Default 0x27 (adjustable via jumpers) |
| Pinout | GND / VCC / SDA / SCL |
| Dimensions | Approx. 80 × 36 × 12 mm |
| Pack Quantity | 1 display module |

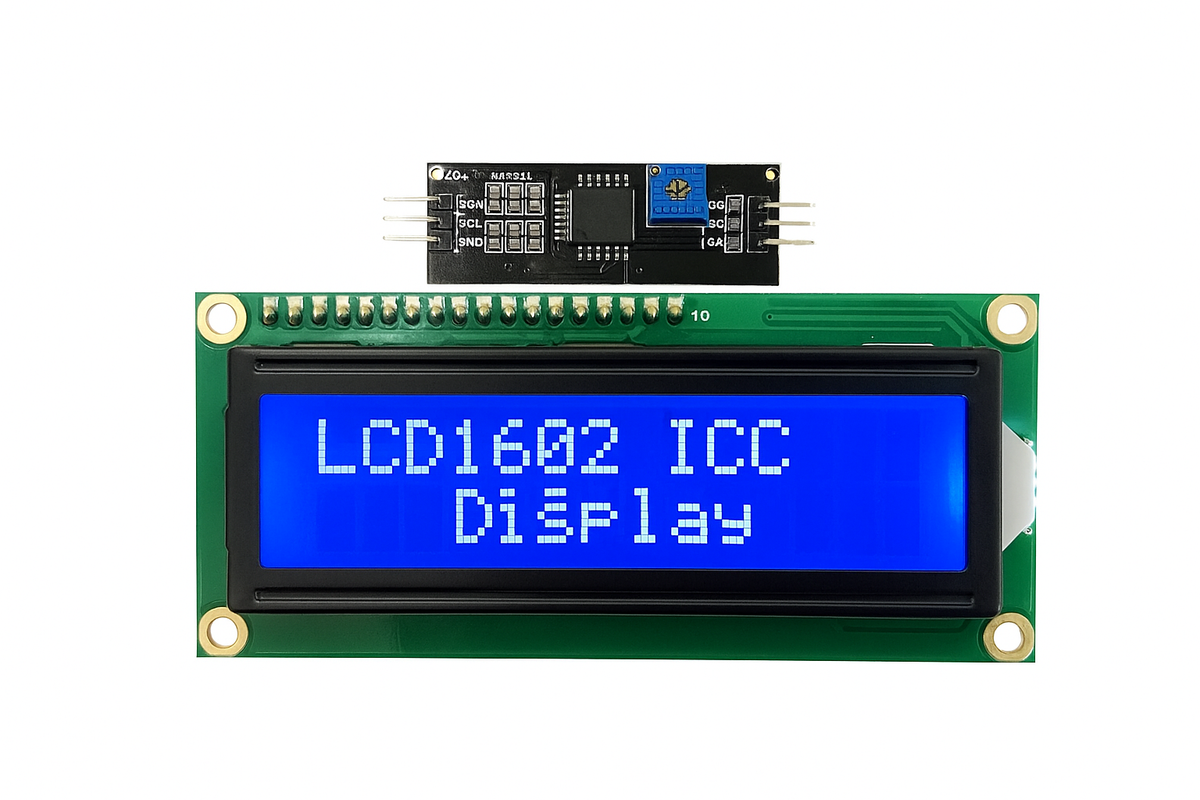

The LCD1602 I2C Display makes adding text output to your projects simple and efficient. Using the I2C interface, you only need two data lines instead of a full 8-bit parallel connection — saving pins on Arduino, ESP32, or Raspberry Pi boards.
Its bright blue backlight and adjustable contrast make it ideal for status displays, sensor readouts, or debugging data in any lighting condition. A must-have for students, makers, and embedded developers.
| Operating Voltage | 3.3 V – 5 V DC |
|---|---|
| Channels | 3 (independent, adjustable) |
| Outputs | 3× Digital (active level varies by board) |
| Sensing Elements | IR LED + Phototransistor (per channel) |
| Detection Distance | Approx. 2–15 mm (surface-dependent) |
| Indicators | Per-channel status LEDs |
| Adjustments | 3× trim-pot threshold controls |
| Connector | VCC / GND / D1 / D2 / D3 |
| Recommended Use | Educational, R&D or hobbyist environments only |
| Statement | For educational laboratory and R&D use only.(non-RoHS). |
|---|---|
| WEEE | Not subject to WEEE marking; obligations apply to final equipment. |
