Adjustable Step-Down • 3–40 V In → 1.5–35 V Out • Up to 3 A • Status LED
Use the onboard multi-turn potentiometer to set the exact voltage you need — power 3.3 V, 5 V, 9 V, 12 V and more from higher DC sources.
Integrated status LED provides a quick visual check of output/power — ideal for bench work and debugging inside enclosures.
LM2596 buck topology with quality passives for stable step-down conversion — great for DIY, robotics, IoT and embedded builds.
| Parameter | Value |
|---|---|
| Input Voltage | ≈ 3 V – 40 V DC |
| Output Voltage | ≈ 1.5 V – 35 V DC (adjustable) |
| Max Output Current | Up to 3 A (derate with temperature) |
| Conversion Efficiency | Up to ~92% (load/conditions dependent) |
| Indicators | Status LED (power/output) |
| Terminals | IN+ / IN− / OUT+ / OUT− |
| Module Size | ~45 × 20 × 14 mm (per module) |
| Pack Quantity | 5 modules |
| Notes | VIN should exceed desired VOUT by ~1.5 V; observe correct polarity. |

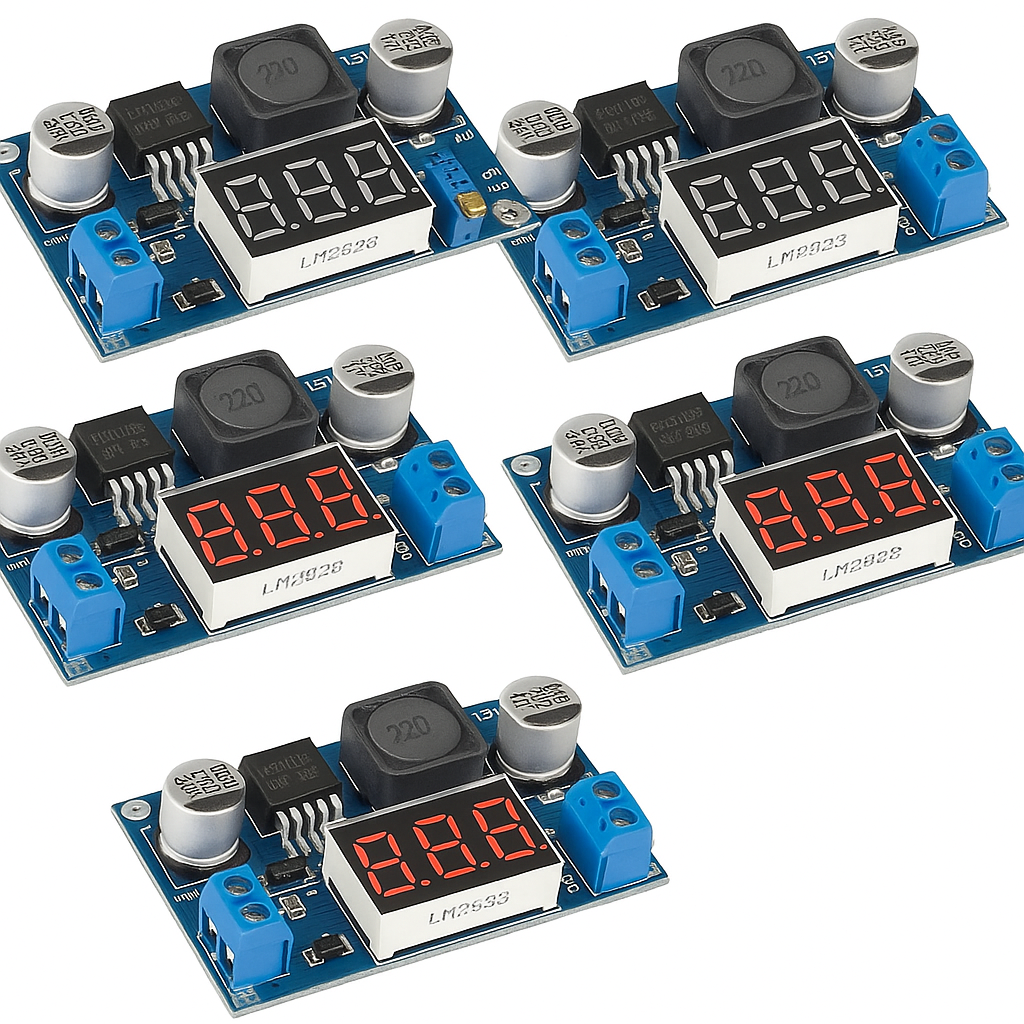

This LM2596 step-down (buck) converter 5-pack adds a handy LED status indicator so you can confirm power/output at a glance — perfect for quick prototyping, field installs, and student projects.
Each board offers a wide input range, smooth voltage adjustment, and compact footprint. Standardise on one module for powering microcontrollers, sensors, radios, and LED strips from batteries or higher-voltage adapters.
| Operating Voltage | 3.3 V – 5 V DC |
|---|---|
| Channels | 3 (independent, adjustable) |
| Outputs | 3× Digital (active level varies by board) |
| Sensing Elements | IR LED + Phototransistor (per channel) |
| Detection Distance | Approx. 2–15 mm (surface-dependent) |
| Indicators | Per-channel status LEDs |
| Adjustments | 3× trim-pot threshold controls |
| Connector | VCC / GND / D1 / D2 / D3 |
| Recommended Use | Educational, R&D or hobbyist environments only |
| Statement | For educational laboratory and R&D use only.(non-RoHS). |
|---|---|
| WEEE | Not subject to WEEE marking; obligations apply to final equipment. |
